Description

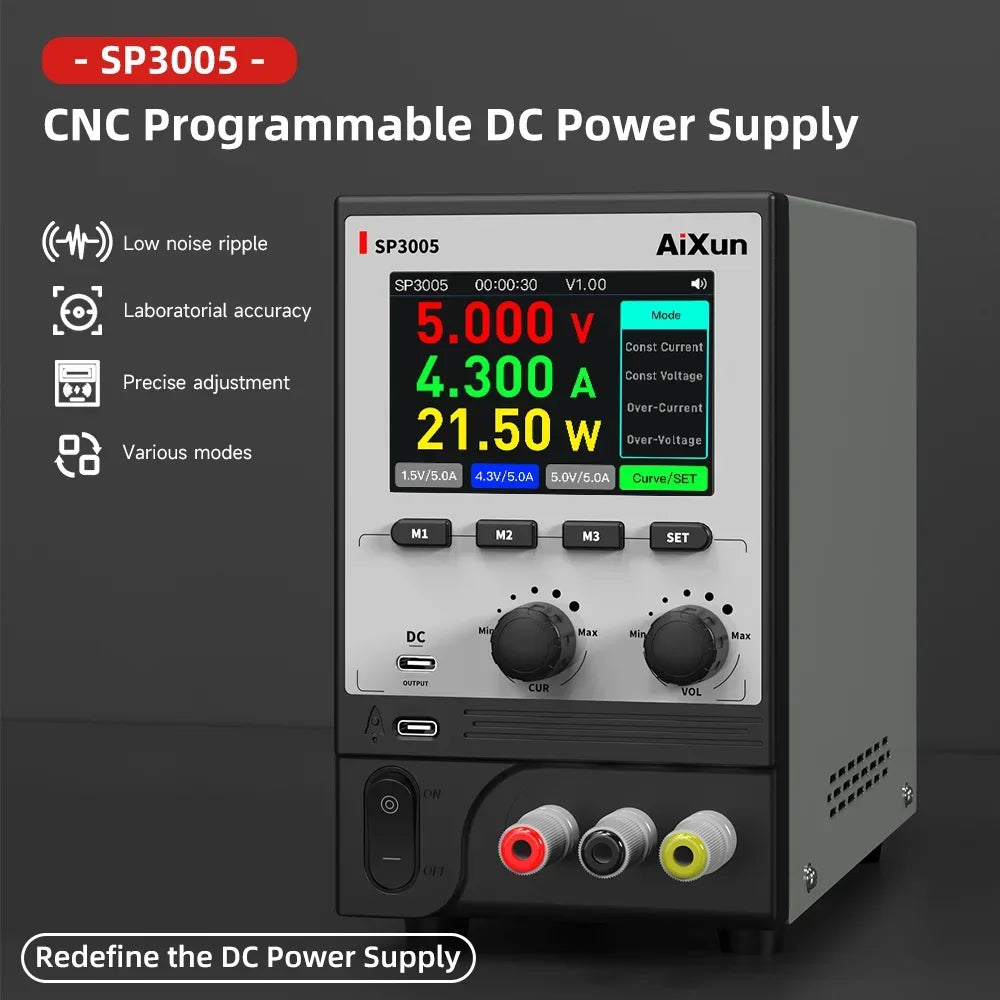

AIXUN SP3005 CNC Programmable DC Power Supply For Desktop Power Encoder Regulation Voltage And Current Dual Input Voltage
Low noise ripple,efficient and stable
Noise ripple <2mVrms/3mAnms, efficiency loss reduced by 30%
Stable power supply at laboratory level, rejecting ripple interference

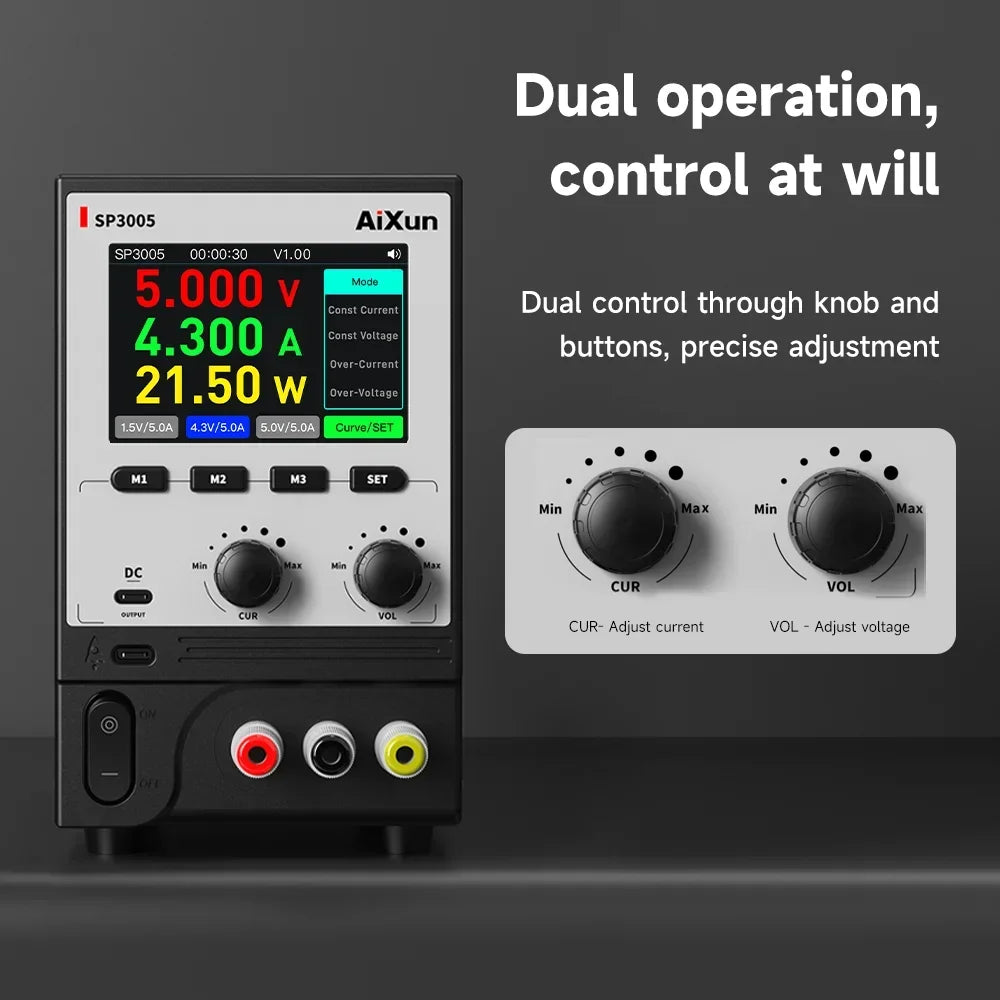

Micro-level precision,various modes for option
High precision 4-figure display ,Support Type-C 30W fast charging QC/PD protocols output
Over-voltage/current protection, constant voltage/current output, enables presetting multiple sets of output voltage/current to meet diverse needs.

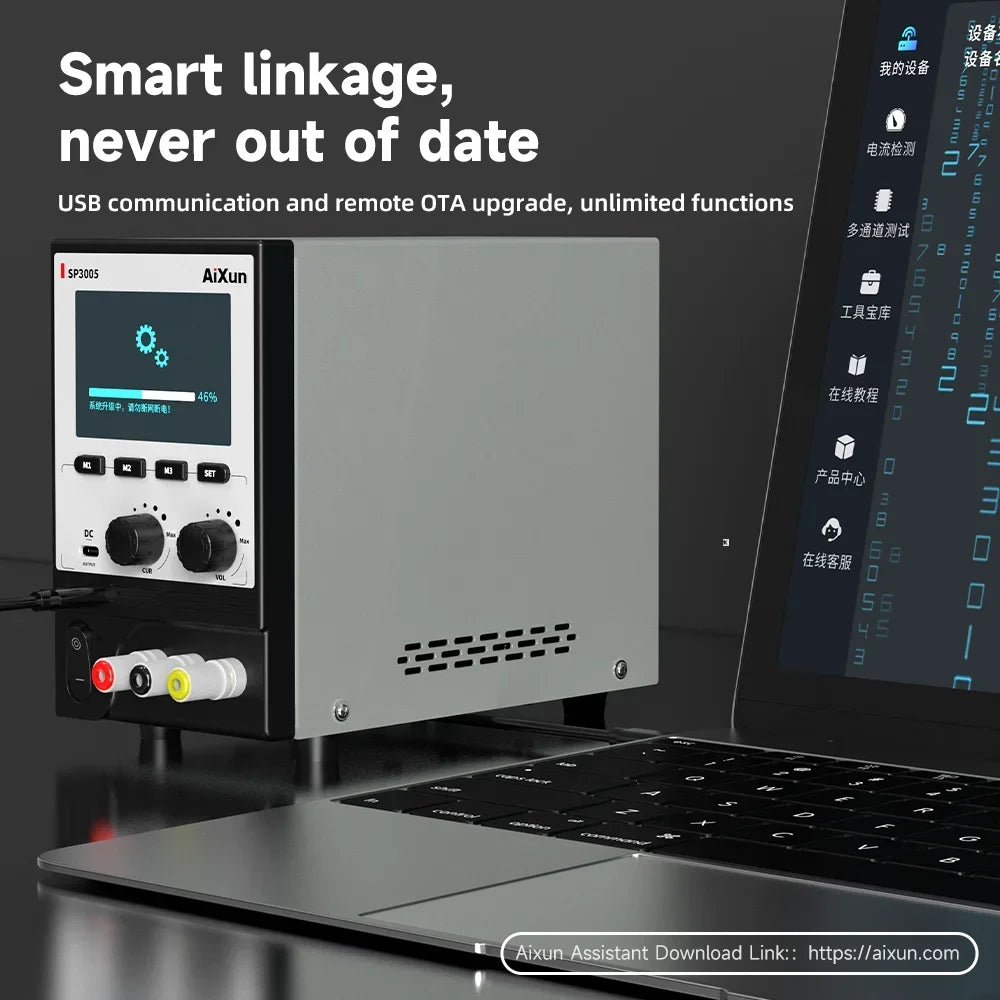

Smart linkage, never out of date
USB communication and remote OTA upgrade, unlimited functions
HD display, clear at a glance
3.5-inch HD IPS screen,
real-time display of parameters/modes, clearly visible

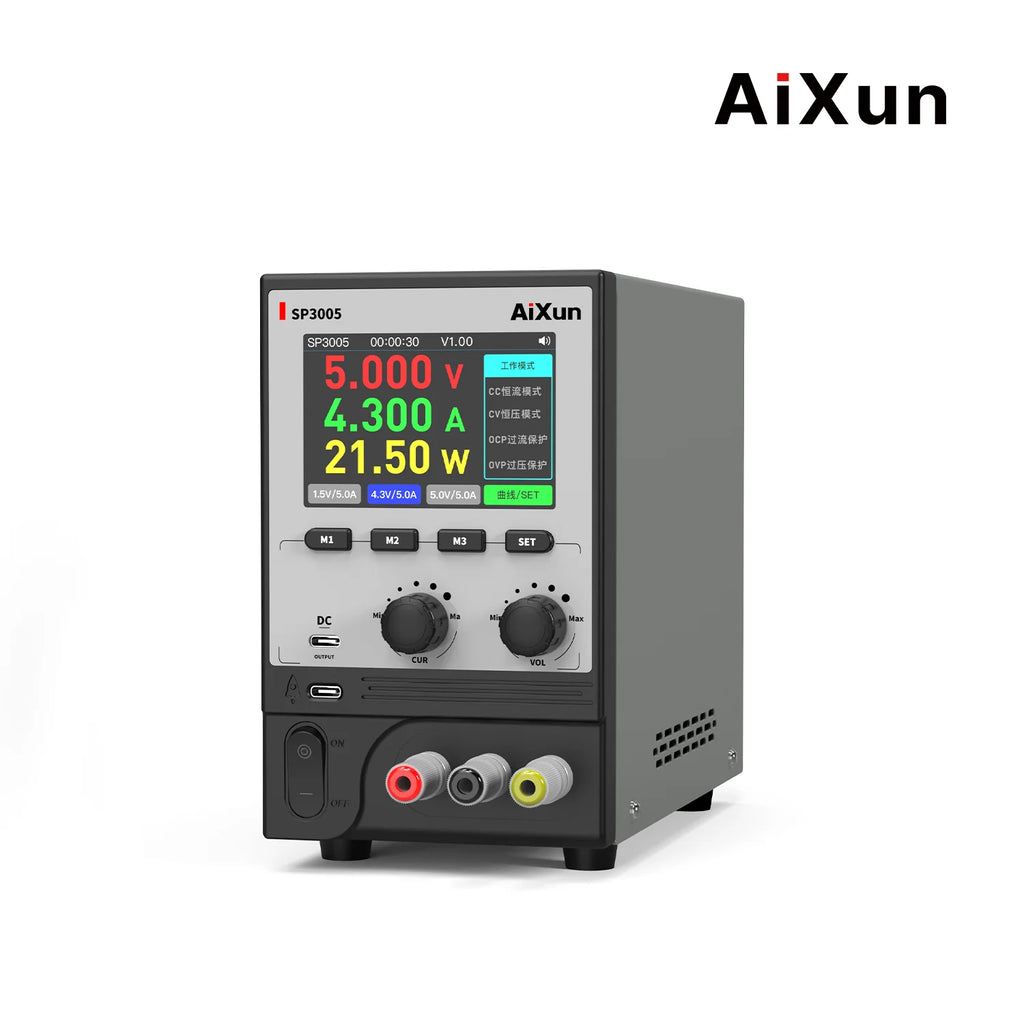

Model: SP3005
Display type: 3.5inch IPS screen
Input voltage: 230V
Dimensions: 200*100*170mm
Communication: USB communication
Material: Sheet metal + plastic
Rated power: 150W (150W square transformer)
Voltage/current range: 0-30V/0-5A adjustable
Load regulation: Voltage: < 0.01%+2mV/Current: <0.1%+5mA
Linear regulation: Voltage: < 0.01%+3mv/ Current: < 0.1%+3mA
Ripple (20hz-20M): Voltage: < 2mV rms/ Current: < 3mA rms (ripple TMV)
Working mode: CC/CV modes; OV/OC protection
