Description
DPM series programmable DC digital control voltage stabilized step-down power supply related information:

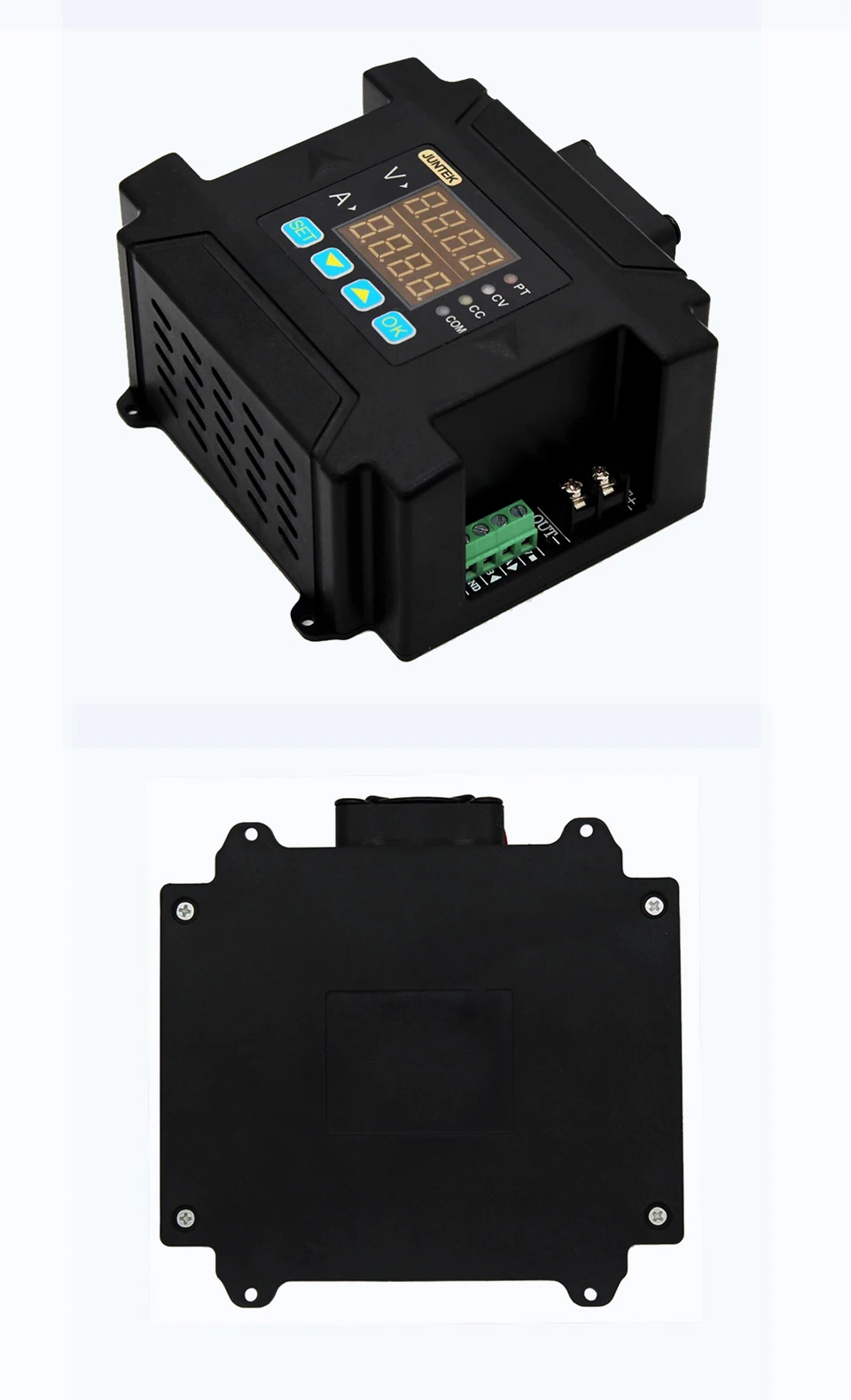

DPM8608-RF programmable DC regulated power supply, voltage 0-60V, current 0-8A continuous adjustment, constant voltage and constant current; the product is easy to operate, stable, high conversion efficiency, accurate output voltage and current and widely used in laboratories, factory testing, power supply and maintenance of electronic equipment.
Feature:

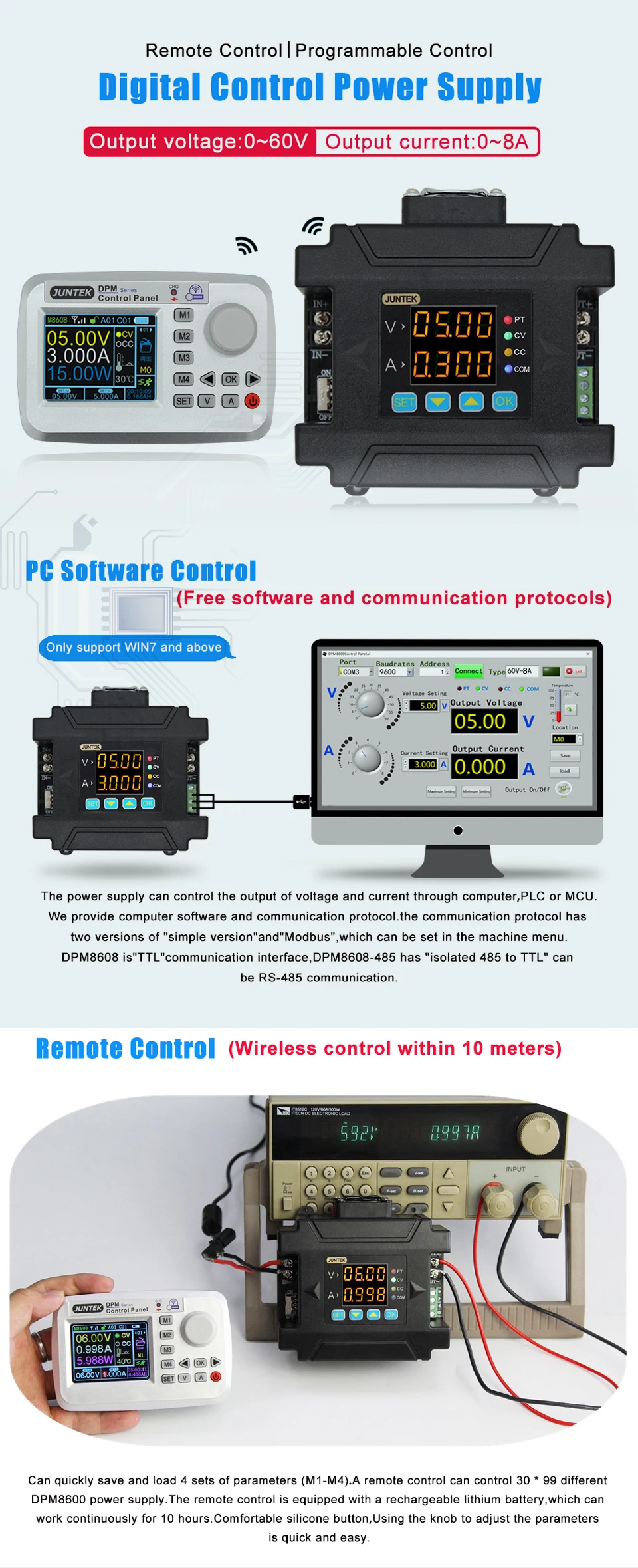

There are three ways to control the power supply;First, the button on the power panel can adjust the voltage and current, Second,the computer software communication regulates the voltage and current, Third,the remote control controls the power supply wirelessly.
The remote control has an effective control distance of 0-10 meters. A remote controller can control 30*99 power supplies by changing the communication channel and address.
Free PC software and communication protocol, the communication protocol is divided into "SIMPLE" and "MODBUS", which can be set in the power menu;
The power supply is based on the BUCK architecture, and it can still work stably with the operating frequency up to 150KHz and the minimum 0.5V voltage difference;
Input DC voltage 10-75V, the power supply can be powered by AC-DC switching power supply ,solar panels, wind turbines or battery-powered equipment;
The maximum and minimum voltage and current can be set to protect the load from damage due to overvoltage;
Equipped with a temperature-controlled fan, intelligently adjusts the fan speed, and automatically cuts off the output after over-temperature;
The voltage regulation response is very fast;
The parameters are automatically saved when the power is turned off, and there are 10 groups of storage locations (M0~M9), which can be saved and recalled at any time;
Input Voltage range: 10-75V
Output Voltage range: 0.01-60V
Output Current range: 0.001-8A
Output power range: 0-480W
Output Voltage setting resolution: 10mV
Output current setting resolution: 1mA
Output ripple: <50mVpp
Conversion Efficiency: 92% (Input 40V,Output 30V,Current 7A)
Voltage and current display accuracy: 10mV, 1mA
Voltage error: 2‰+1 digit
Current error: 5‰+2 digit
Response time: <50ms
Operating Frequency: 150KHz
Operating Temperature: -10°C to +45°C
Control Method: Digital Control + LED Display
Weight: 260g

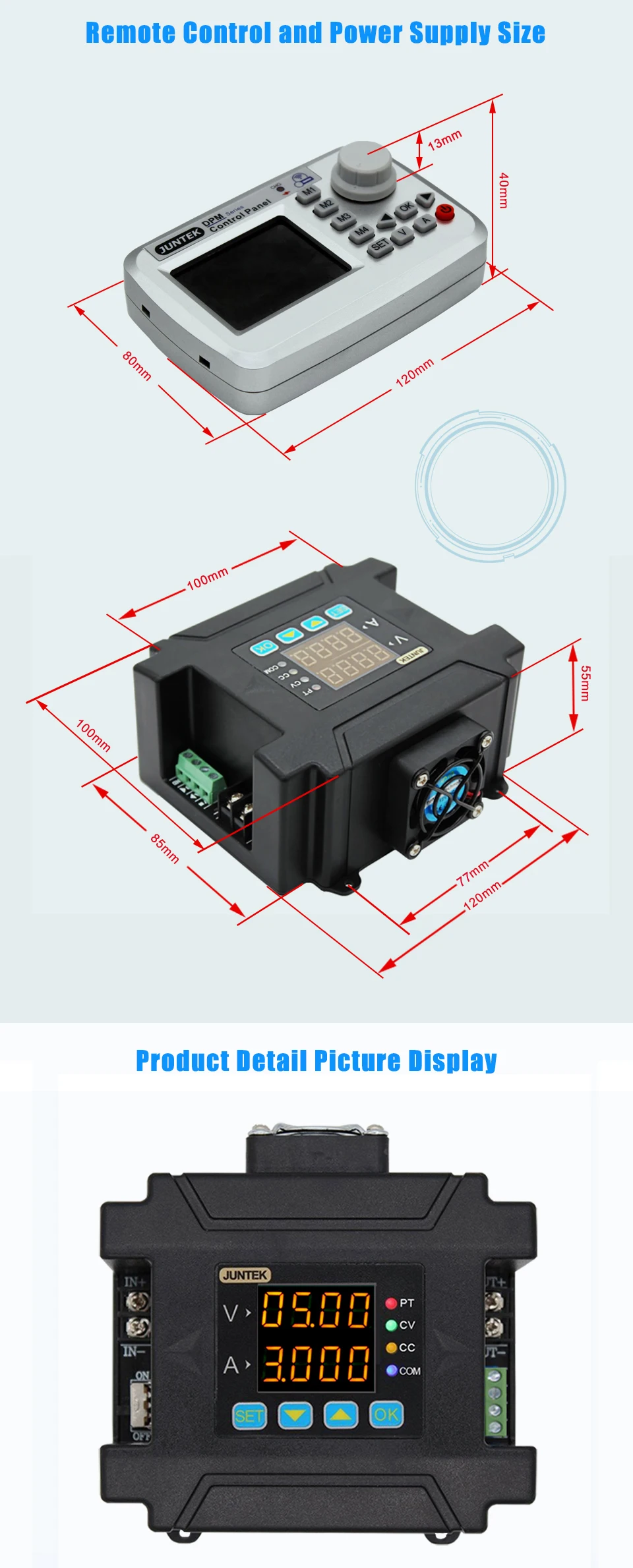

Dimensions: 131 *112 * 55mm
Package Weight: 380g
Package Size: 130*130*70mm

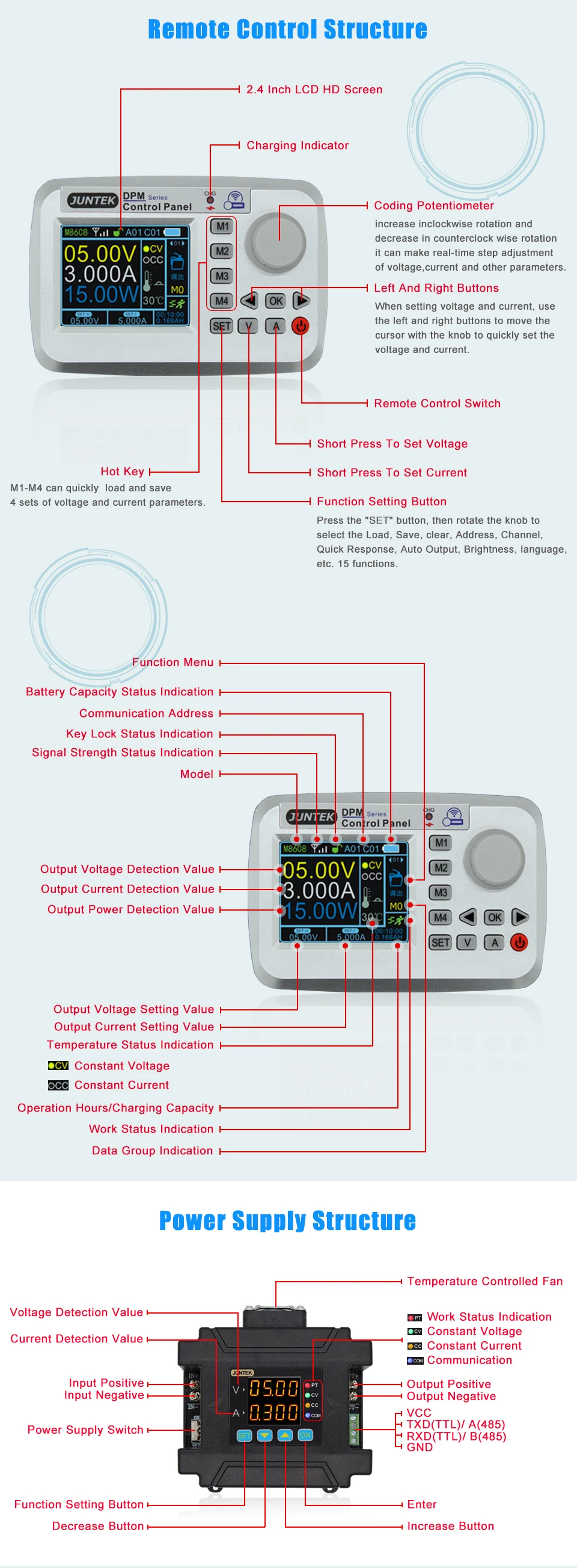

Remote control technical indicators:
Display screen size: 2.4 inch LCD Screen;
Wireless communication distance:0-10 meters (accessible)
Wireless transmission method: 2.4GHz RF
Battery capacity:3.7V/2000mA ( lithium battery)
Remote control size:120*80*20mm
Remote control weight:140g
Package Size(Remote control + power):210*150*75mm
Package Weight(Remote control + power):600g
