Description
MAANT Signal Tester RFFE Signal Repair Analyzer Intelligent Search One-click Positioning Multifunctional Signal Detector
Mobile phone no signal maintenance professional equipment
Signal tester :Solve the open antenna of the maintenance high-pass solution without service faults ,Do not misjudge all models .
He specializes in repairing Qualcomm baseband phones ,No service, open antenna, Apple jump card,Auxiliary instrument,
Whether the phone is flooded or broken or broken by normal use ,All can be used to measure, greatly reducing the time of investigation .
Device connection resolution
Open the software. After the data is loaded, an error is reported during the loading. You need to open the software again .
On the left, click *PFFE Protocol” "Intelligent Analysis System"
Port point Open the drop-down arrow to select the port - point connection of the device
Connect successfully This action window pops up, the first time you need to bind the computer
The connected device indicator is on, but no port is out ,Drivers are generally not required, and individual systems may be stripped-down versions that require manual driver installation Tutorial in the public number.

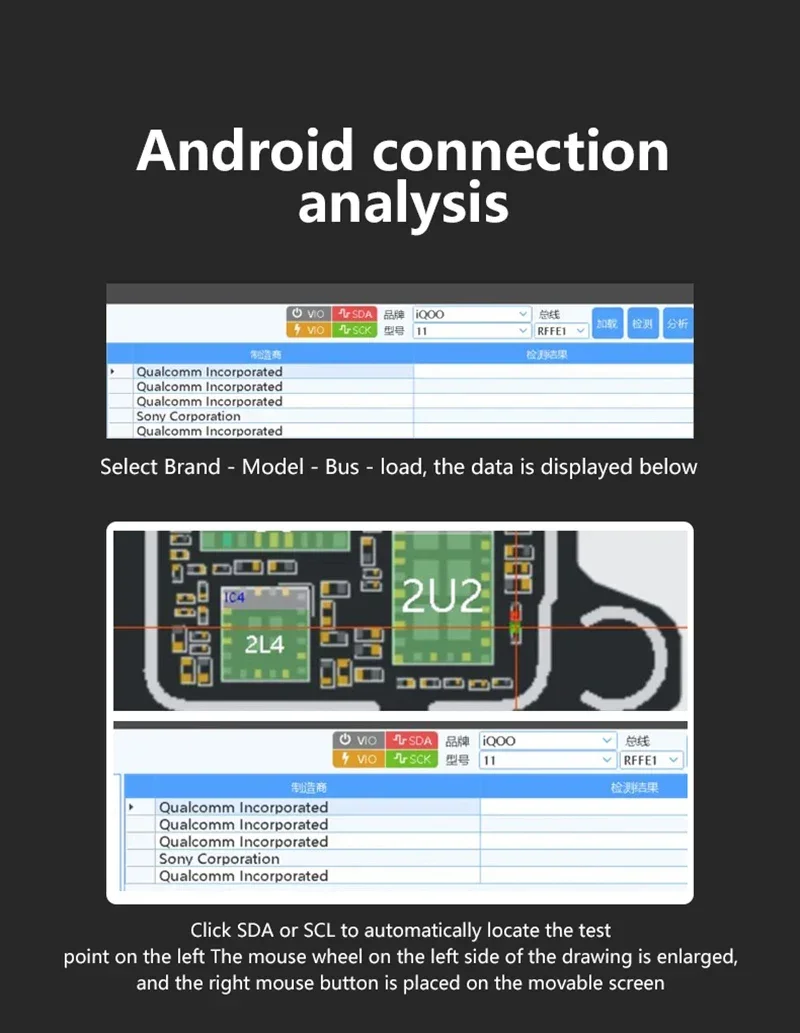

Click SDA or SCL to automatically locate the test

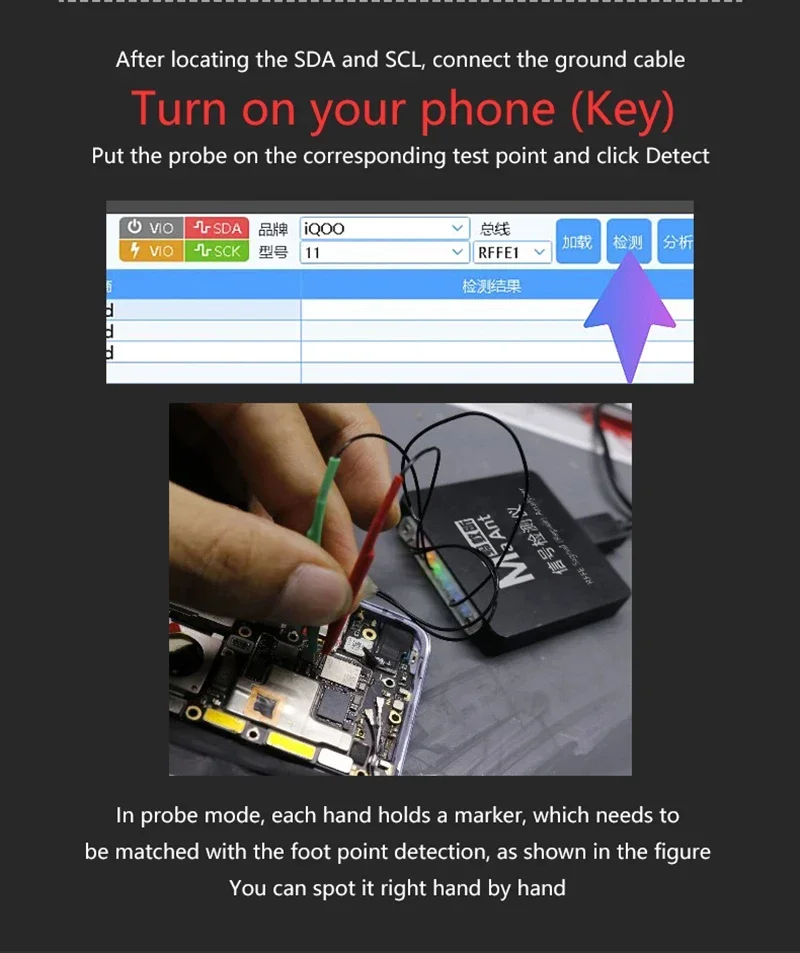

point on the left The mouse wheel on the left side of the drawing is enlarged,and the right mouse button is placed on the movable screen,After locating the SDA and SCL, connect the ground cable ,Turn on your phone (Key),Put the probe on the corresponding test point and click Detect.

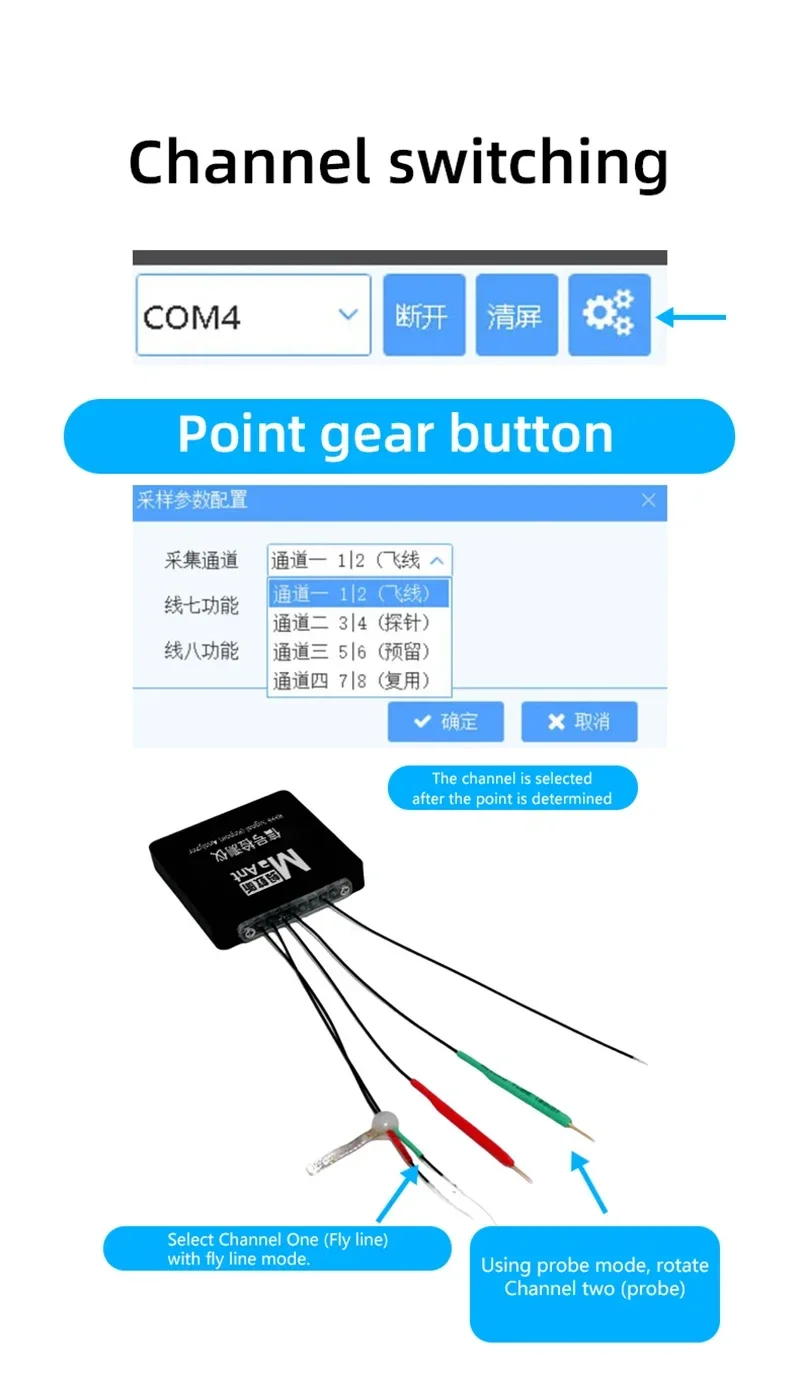

In probe mode, each hand holds a marker, which needs to be matched with the foot point detection, as shown in the figure You can spot it right hand by hand .

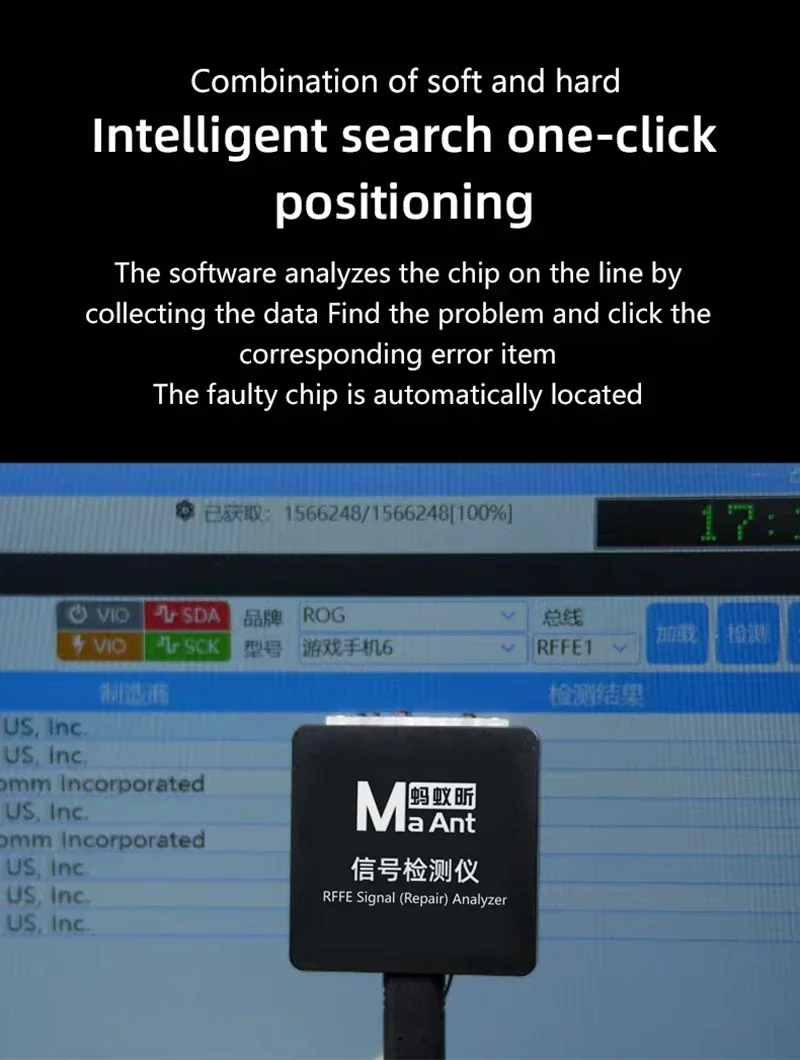

Combination of soft and hard Intelligent search one-click positioning
The software analyzes the chip on the line by collecting the data Find the problem and click the corresponding error item The faulty chip is automatically located.

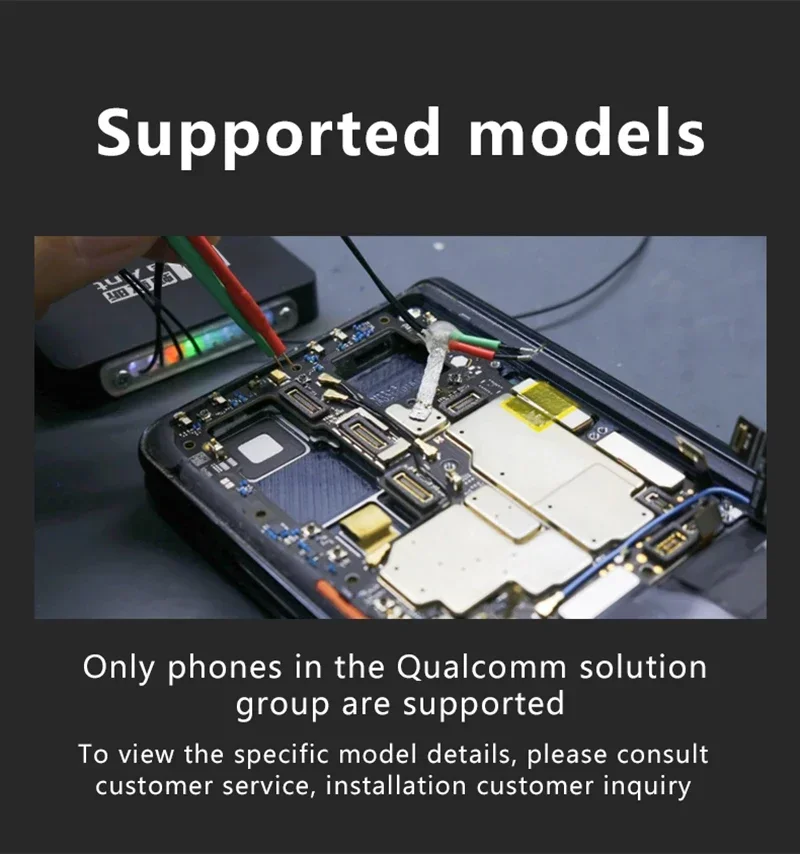

Only phones in the Qualcomm solution group are supported To view the specific model details, please consult customer service, installation customer inquiry.
