SpeedyBee F405 V3 3-6S 30X30mm FPV Stack BMI270 F405 Flight Controller BLHELIS 50A 4in1 ESC for FPV Freestyle Drones DIY Parts
1. Note: please notice the options, F405 V3 STACK IT COME WITH BOXES,
2. only esc is only esc, only F405 is only F405 FC ,and it all come with bubble bag packages.

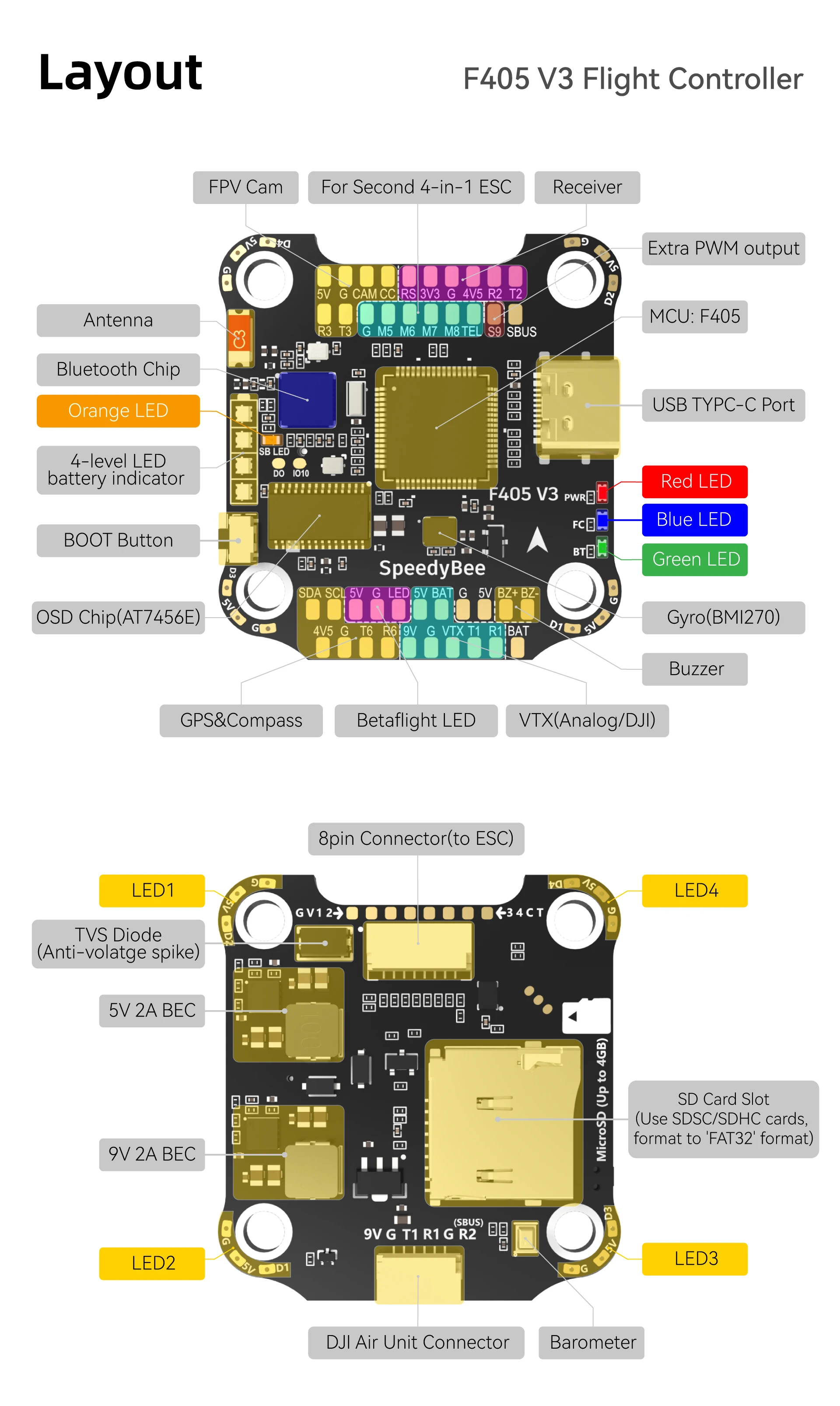

Specifications
Product Name
SpeedyBee F405 V3 30x30 Flight Controller
MCU
STM32F405
IMU(Gyro)
BMI270
USB Port Type
Type-C
Barometer
Built-in
OSD Chip
AT7456E chip
BLE Bluetooth
Supported. Used for Flight Controller configuration
DJI Air Unit Connection Way
Two ways supported: 6-pin connector or direct soldering.

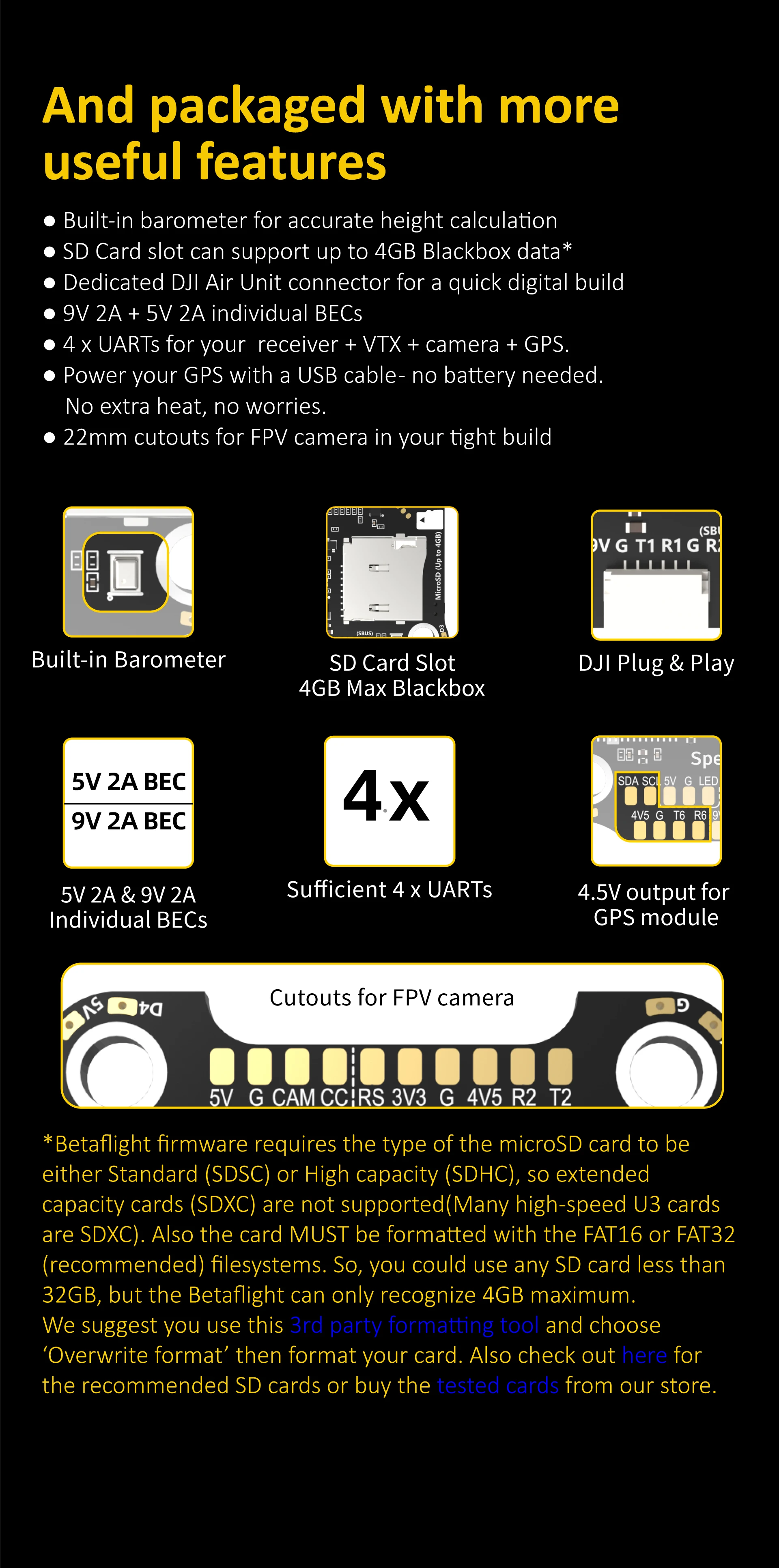

Blackbox MicroSD Card Slot
*Betaflight firmware requires the type of the microSD card to be
either Standard (SDSC) or High capacity (SDHC),so extended
capacity cards (SDXC) are not supported(Many high-speed U3
cards are SDXC). Also the card MUST be formatted with the
FAT16 or FAT32 (recommended) filesystems. So, you could
use any SD card less than 32GB, but the Betaflight can only
recognize 4GB maximum. We suggest you use this
3rd party formatting tooland choose 'Overwrite format' then format
your card.
BetaFlight Camera Control Pad
Yes(CC pad on the front side)
Current Sensor Input
Supported. For SpeedyBee BLS 50A ESC, please set scale = 386 and Offset = 0.

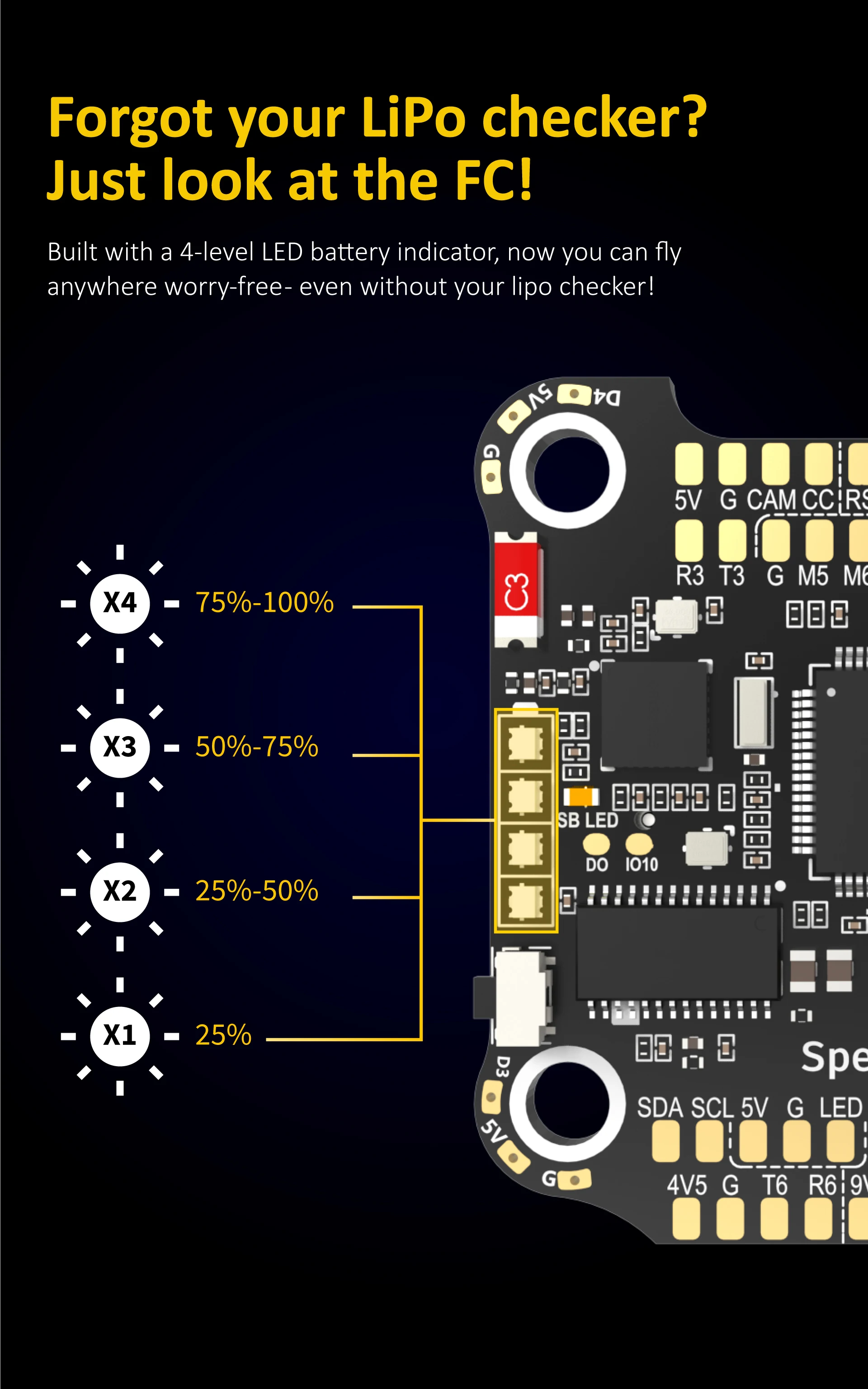

Power Input
3S - 6S Lipo(Through G, BAT pins/pads from the 8-pin connector or 8-pads on the bottom side)
5V Output
9 groups of 5V output, four +5V pads and 1 BZ+ pad( used for Buzzer) on front side,
and 4x LED 5V pads. The total current load is 2A.
9V Output
2 groups of 9V output, one +9V pad on front side and other included in a connector
on bottom side. The total current load is 2A.
3.3V Output
Supported. Designed for 3.3V-input receivers. Up to 500mA current load.
4.5V Output
Supported. Designed for receiver and GPS module even when the FC is powered
through the USB port. Up to 1A current load.

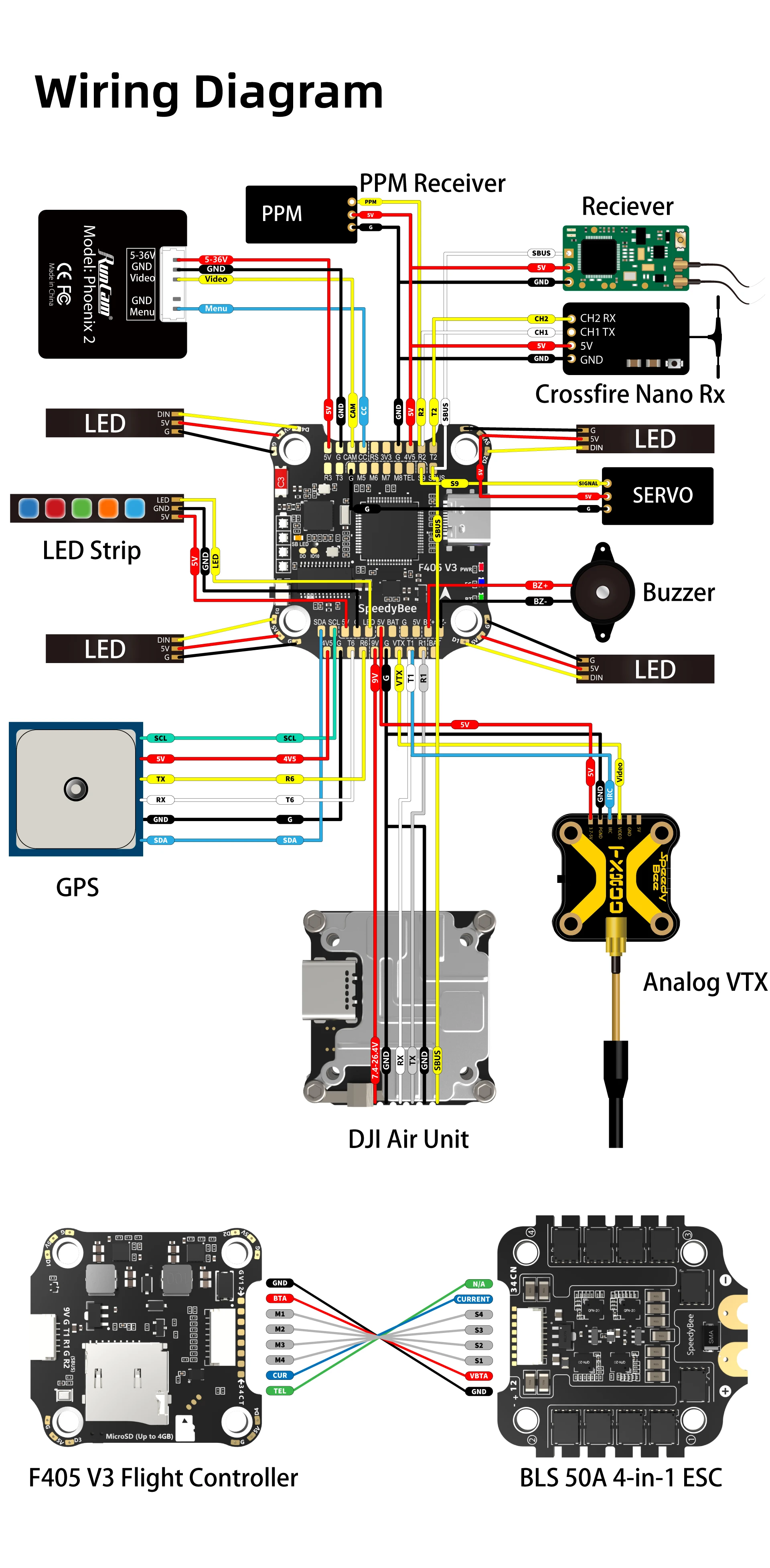

ESC Signal

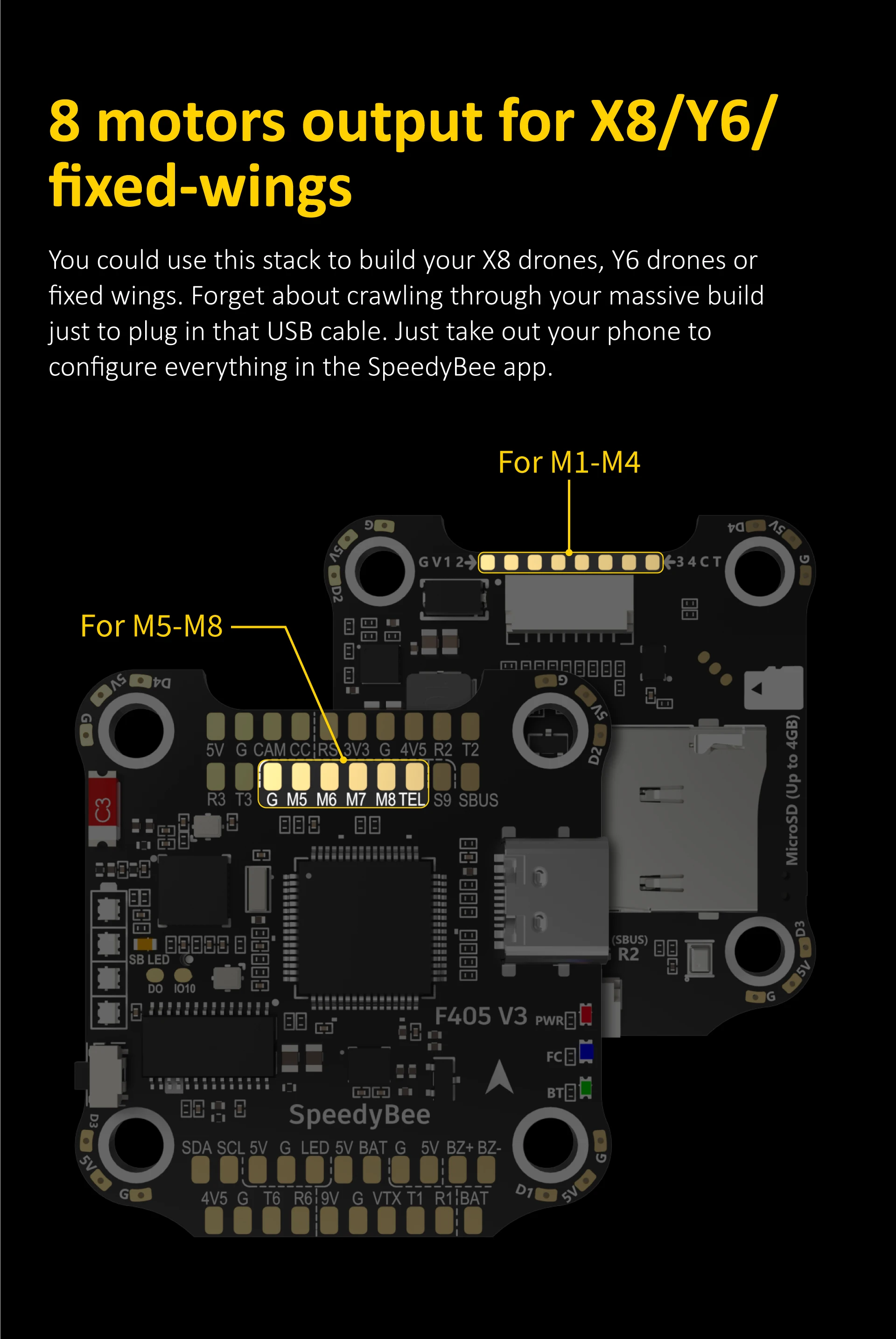

M1 - M4 on bottom side and M5-M8 on front side.
UART
5 sets(UART1, UART2, UART3, UART4(For ESC Telemetry), UART6)
ESC Telemetry UART
R4(UART4)
I2C
Supported. SDA & SCL pads on front side. Used for magnetometer, sonar, etc.
Traditional Betaflight LED Pad
Supported. 5V, G and LED pads on bottom of the front side. Used for WS2812 LED
controlled by Betaflight firmware.
Buzzer
BZ+ and BZ- pad used for 5V Buzzer
BOOT Button
Supported.
[A]. Press and hold BOOT button and power the FC on at the
same time will force the FC to enter DFU mode, this is for
firmware flashing when the FC gets bricked.
[B]. When the FC is powered on and in standby mode, the

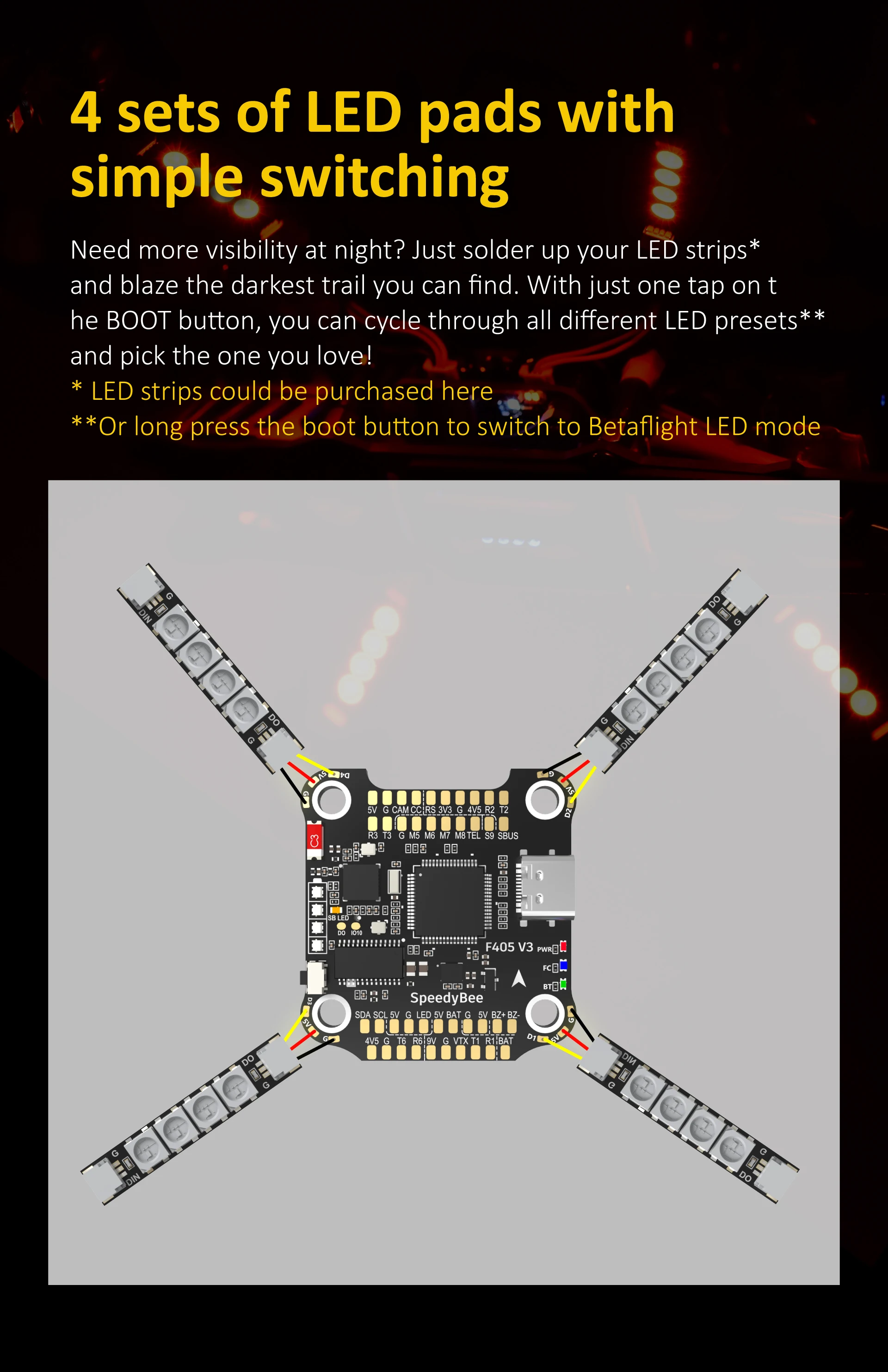

BOOT button can be used to controller the LED strips
connected to LED1-LED4 connectors on the bottom side.
By default, short-press the BOOT button to cycle the LED
displaying mode. Long-press the BOOT button to switch
between SpeedyBee-LED mode and BF-LED mode.
Under BF-LED mode, all the LED1-LED4 strips will be
controlled by Betaflight firmware.
RSSI Input
Supported. Named as RS on the front side.
SmartPort
Use any TX pad of UART for the SmartPort feature.
Supported Flight Controller Firmware
BetaFlight(Default), EMUFlight, INAV
Firmware Target Name
SPEEDYBEEF405V3

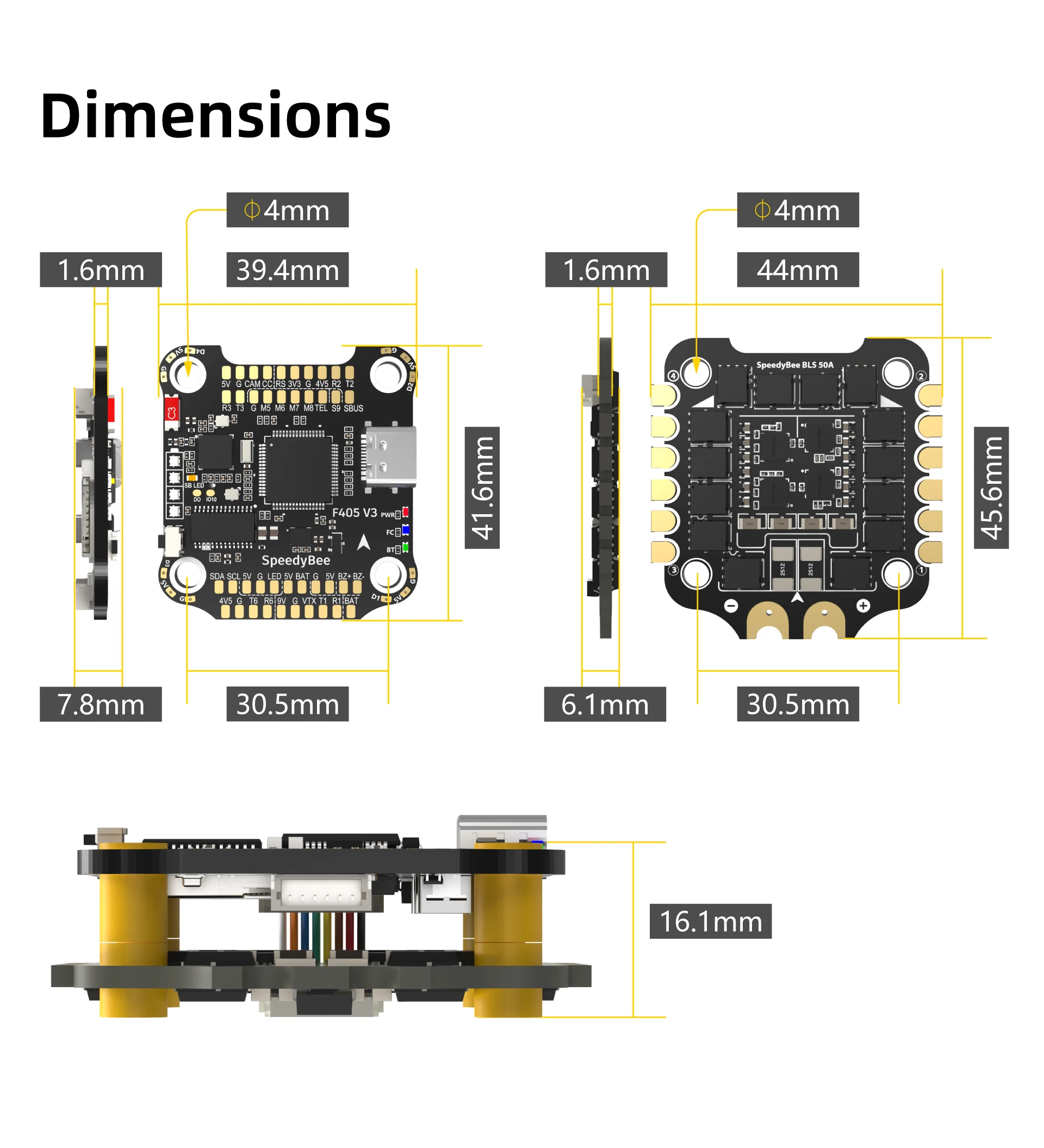

Mounting
30.5 x 30.5mm( 4mm hole diameter)
Dimension
41.6(L) x 39.4(W) x 7.8(H)mm
Weight
9.6g

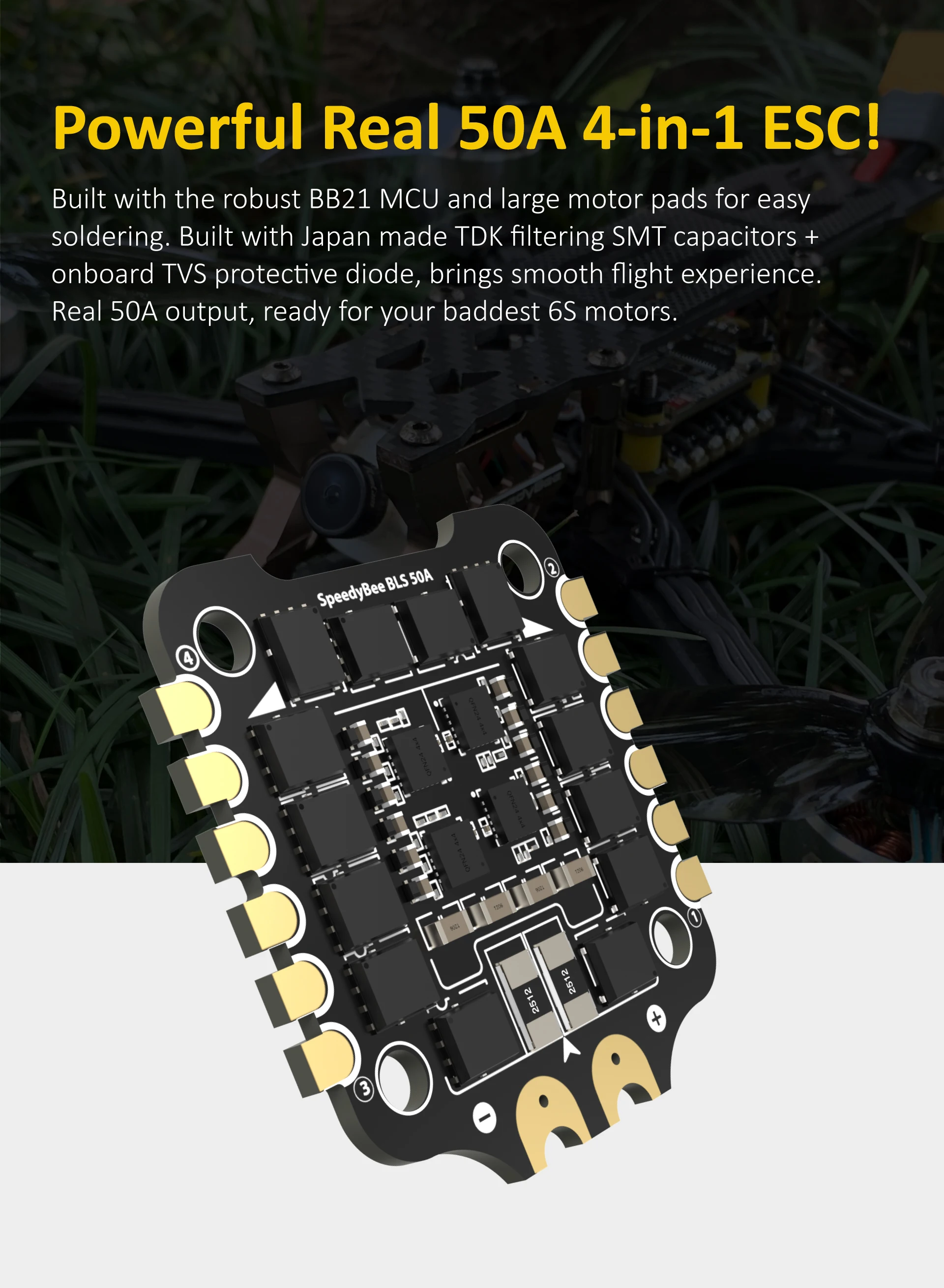

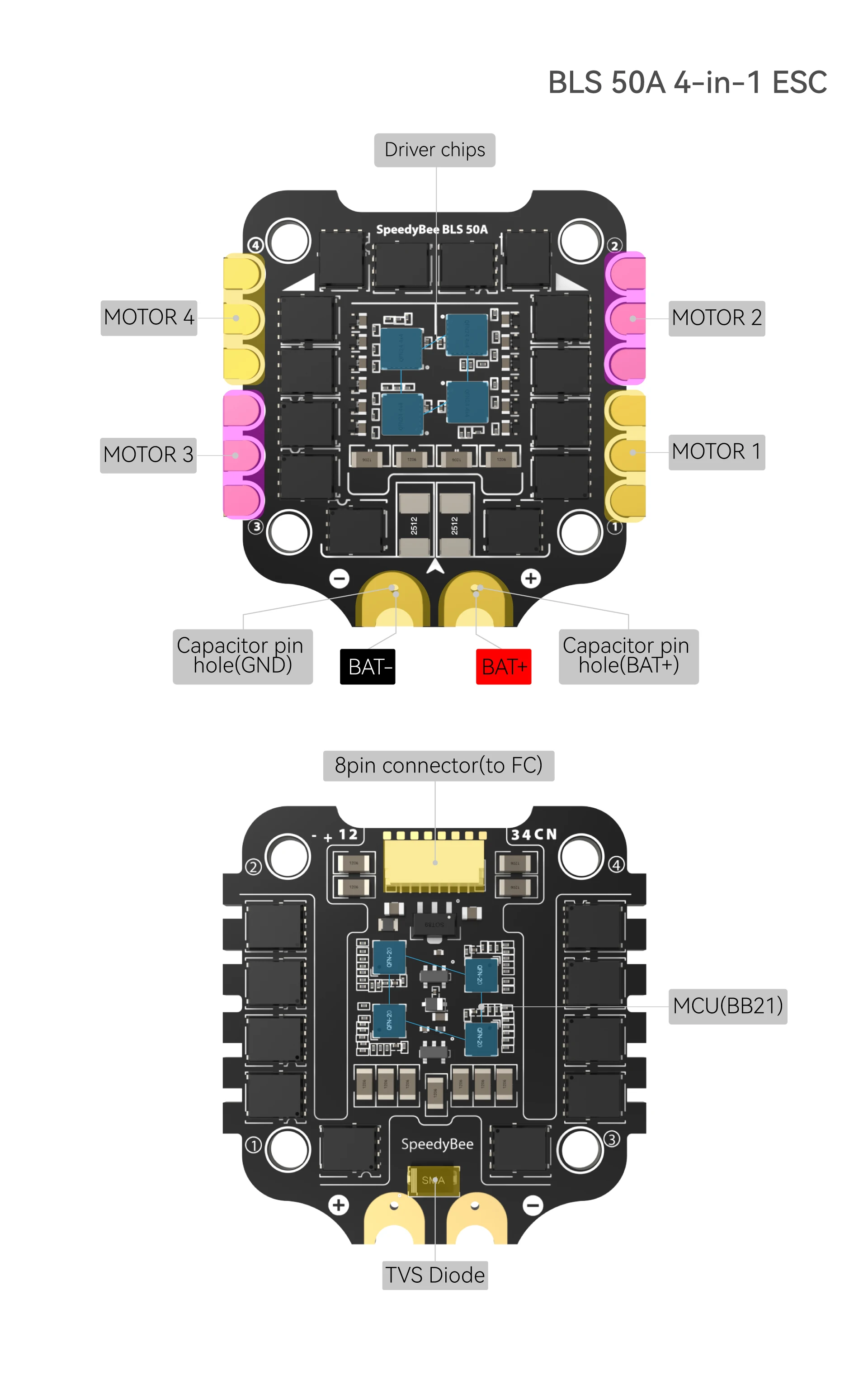

Product Name
SpeedyBee BLS 50A 30x30 4-in-1 ESC
Firmware
BLHeli_S JH50

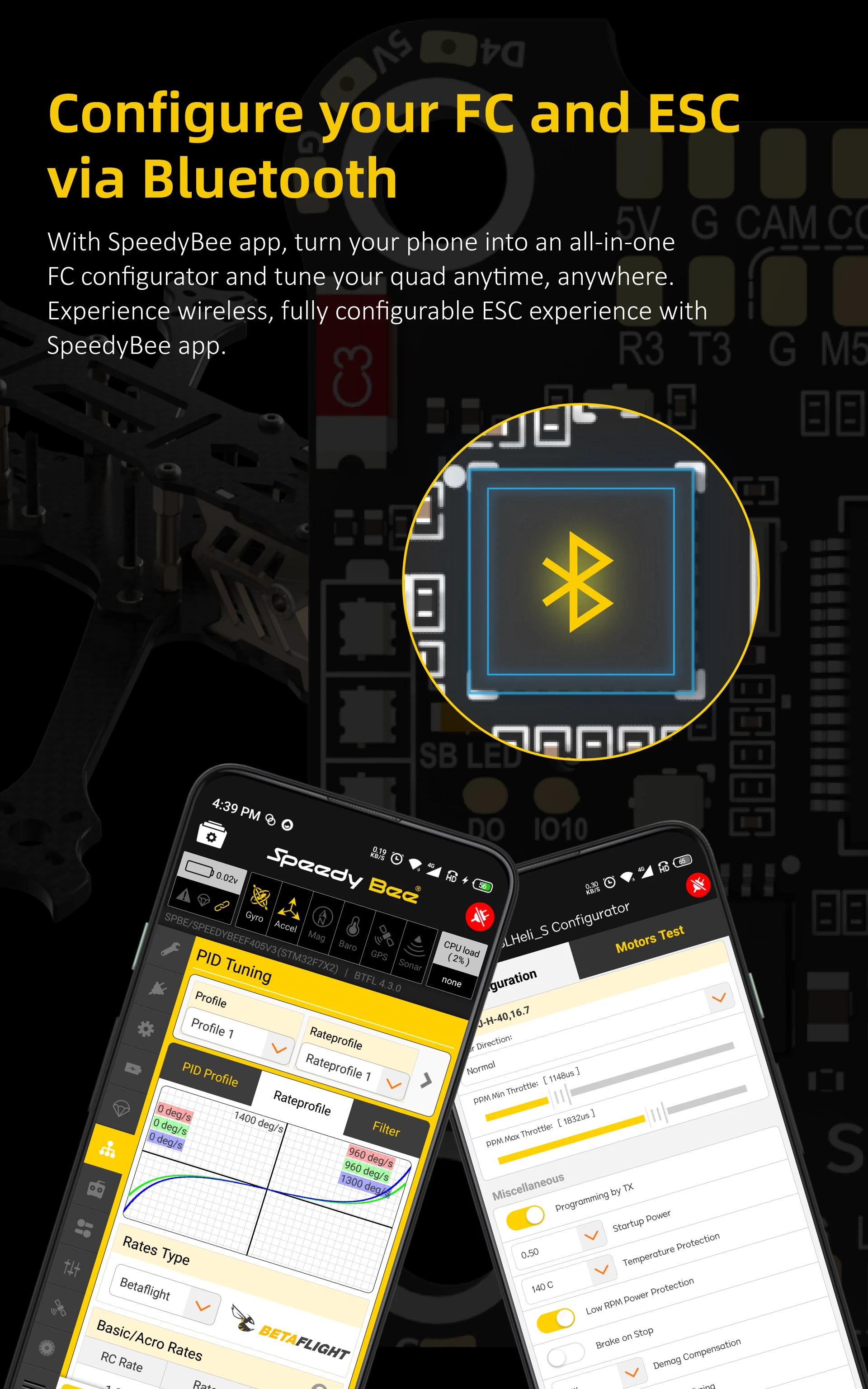

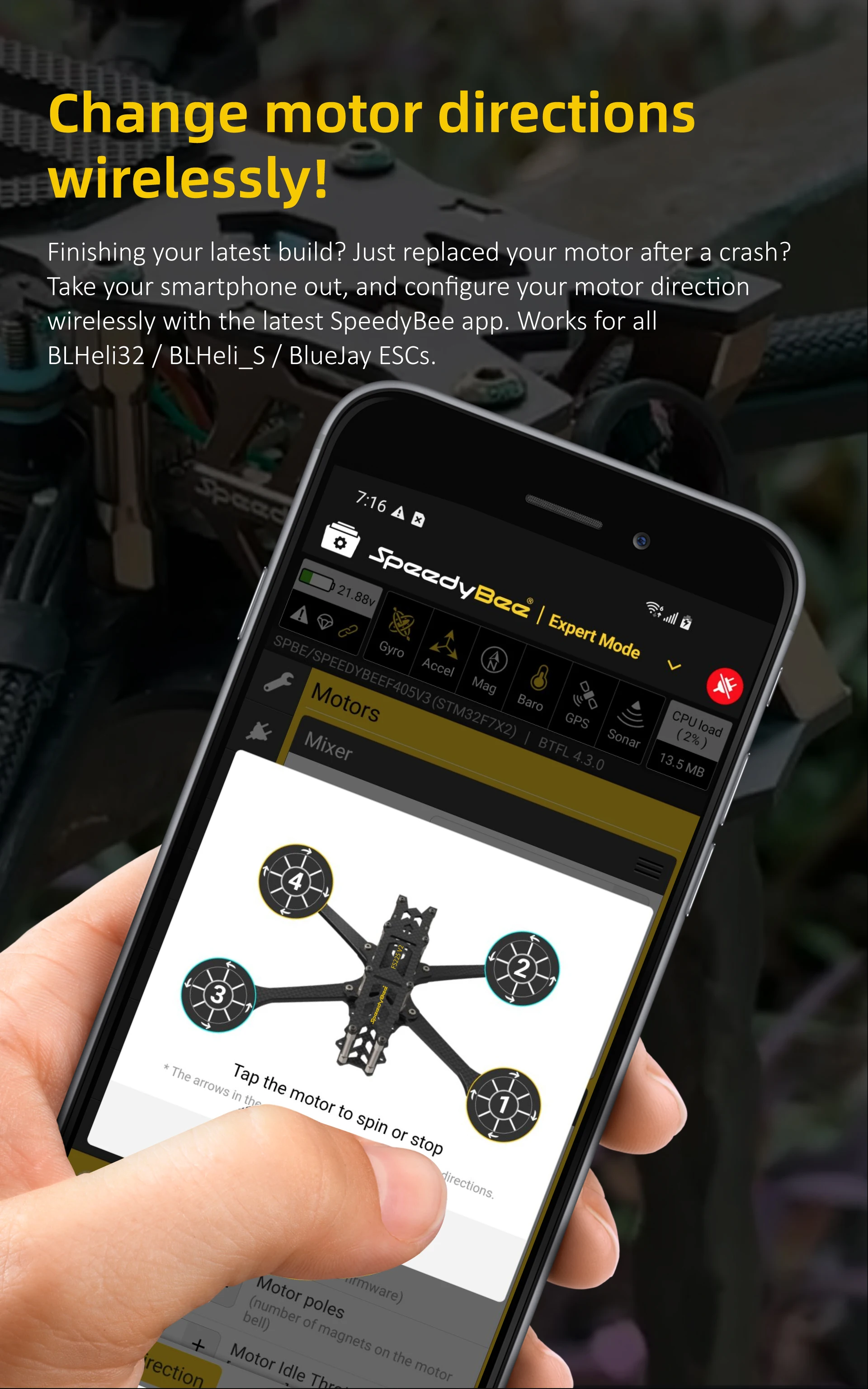

Wireless Configuration
Full Configuration Supported in the SpeedyBee app
PC Configurator Download Link
Continuous Current
50A * 4
Burst Current
55A(5S)
TVS Protective diode
Yes

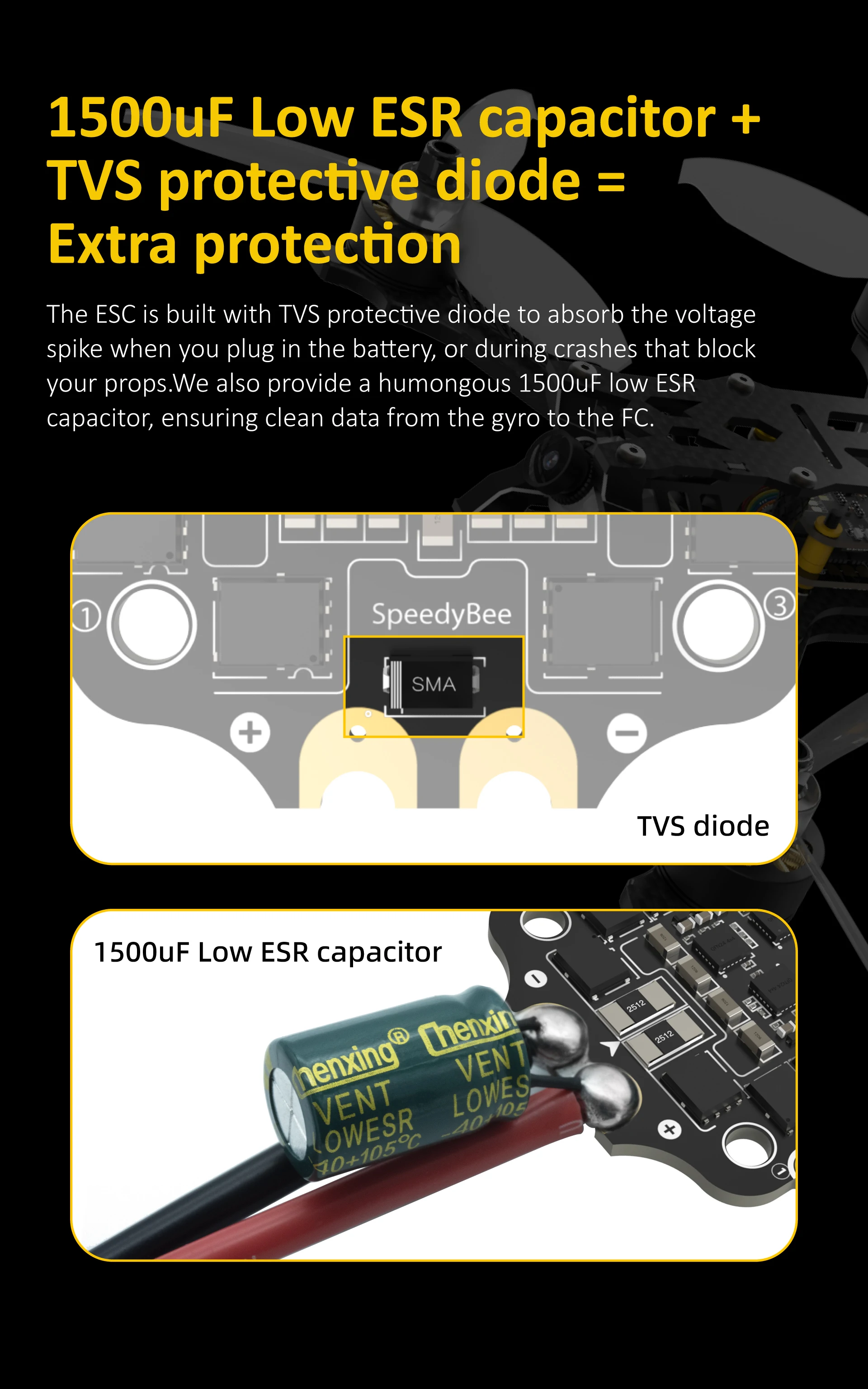

External Capacitor
1500uF Low ESR Capacitor(In the package)
ESC Protocol
DSHOT300/600
Power Input
3-6S LiPo
Power Output
VBAT
Current Sensor
Support (Scale=386 Offset=0)
Mounting
30.5 x 30.5mm( 4mm hole diameter)
Dimension
45.6(L) * 44(W) * 6.1mm(H)
Weight
13.8g
